Navigation Vibration Sensor , Inertial Quartz Flexure Accelerometer , Acceleration Transducer For INS IMU
Product Introduction
Quartz flexible accelerometer is a high-precision military inertial navigation grade accelerometer product with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static testing and dynamic testing. test, is also a standard vibration sensor.
The output current of the product has a linear relationship with the force or acceleration received, and the user can select an appropriate sampling resistor through calculation to achieve high-precision output. A temperature sensor can be built-in according to user needs, which can be used to compensate the offset value and scale factor to reduce the influence of ambient temperature.
Performance Characteristics
| No. | Parameters | JB01-1 | JB01-02 | JB01-03 |
| 1 | Range | ±50g | ±50g | ±50g |
| 2 | Threshold | 5μg | 5μg | 5μg |
| 3 | Bias K0/K1 | ≤±3mg1 | ≤±3mg | ≤±5 mg |
| 4 | Scale factor K1 | 1.05~1.30 mA/g | 1.05~1.30 mA/g | 1.05~1.30 mA/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±10μg /g2 | ≤±15μg /g2 | ≤±20μg /g2 |
| 6 | 0g 4 hours short-term stability | ≤10 μg | ≤15 μg | ≤20 μg |
| 7 | 1g 4 hours short-term stability | ≤10 ppm | ≤15 ppm | ≤20 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤10 μg | ≤20 μg | ≤30 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤15ppm | ≤30 ppm | ≤50 ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±10 μg /g2 | ≤±20 μg /g2 | ≤±30 μg /g2 |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±10 μg /℃ | ≤±30 μg /℃ | ≤±50 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±10 ppm /℃ | ≤±30 ppm /℃ | ≤±50 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv | ≤8.4mv | ≤8.4mv |
| 14 | Natural frequency | 400~800 Hz | 400~800 Hz | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) | 6g(20-2000Hz) | 6g(20-2000Hz) |
| 17 | Impact | 100g,5ms,1/2sin | 100g,5ms,1/2sin | 100g,5ms,1/2sin |
| 18 | Working temp. | -55~+85℃ | -55~+85℃ | -55~+85℃ |
| 19 | Store temp. | -60~+120℃ | -60~+120℃ | -60~+120℃ |
| 20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V |
| 21 | Consume current | ≤±20mA | ≤±20mA | ≤±20mA |
| 22 | Thermal sensor | Customizable | Customizable | Customizable |
| 23 | Size | Ф25.4X30mm | Ф25.4X30mm | Ф25.4X30mm |
| 24 | Weight | ≤80g | ≤80g | ≤80g |
Applications
Drilling Inclination Measurement
Aeronautics Astronautics
Instruments Inertial Equipment
Features
High resolution
High stability
High accuracy
Low power
Excellent overload capacity
Small volume
Low cost
Broad measurement range
Dimension
Product Tags:
|
|

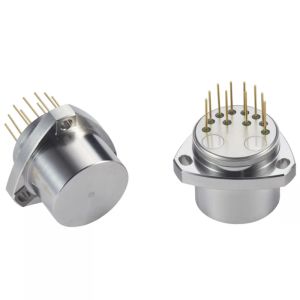

INS IMU Navigation Vibration Sensor , Inertial Quartz Flexure Accelerometer Images
|
